Universal CP2102 Driver Download For Windows 11 10 7 | Silicon Lab CP210x Driver

Many engineers, makers and hobbyists still use the devices with simpler older serial data protocols to communicate with the PC, but modern computers no longer support them in a simple way, making connection a challenge without the right adapter.

That’s where the USB to UART Bridge Controller comes in and which requires CP2102 driver download. This controller acts as a bridge between your USB port and serial protocol based devices which makes data transfer quick, stable, and hassle-free. Serial ports, it was once straightforward, but modern laptops no longer make it that easy.

Silicon Lab CP2102 is an all-in-one chip that includes a USB 2.0 controller, oscillator, transceiver, and memory, all packed neatly into a small 5×5 mm package. What makes it special is its ability to let your computer recognize a serial device as a standard COM port, which is promptly handled by Virtual COM Port (VCP) drivers.

CP2102 Driver for Windows 11/ 10/ 7

-> Installing the CP2102 driver is simple and takes just a few minutes. Once installed, your device will automatically appear as a COM port on your PC, ready to exchange data instantly.

-> Silicon Lab CP2102 USB serial port driver, compatible with Windows 7/8/8.1/10/11 (32/64-bit) and Windows Server. Microsoft WHQL certified, supporting virtual COM port (VCP) and direct USBXpress driver modes for enhanced flexibility.

File Name: CP2101_Universal_Drivers_Windows_10_11_updated.zip
File Information: Zip Archive (~282Kb)

Download link:  CP2102 Driver Download for Windows 11/ 10 (universal CP2102x driver)

Steps for installing the driver:

1. Download the driver package using the link provided above.
2. Extract the .zip file, find x64 folder (as per your system) and locate ‘sillabs.sys’, then run this driver file.
3. Follow the on-screen steps to complete installation (scroll down if needed step-by-step instructions).

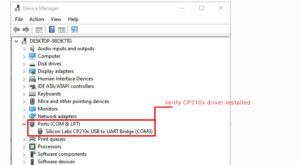

4. Now, connect your device via USB; the system will automatically detect the newly connected hardware.
   For troubleshooting, see the Silabs Support Page.
5. This universal Silicon Lab CP2102x driver works on both CP2102 and CP2109 versions.

These are official driver packages which are available from Silabs.com. In some cases, downloading Virtual COM Port (VCP) drivers, which simulate standard COM ports and USBXpress drivers for direct API access may be necessary.

These are official driver packages which are available from Silabs.com. In some cases, downloading Virtual COM Port (VCP) drivers, which simulate standard COM ports and USBXpress drivers for direct API access may be required.

Below given download link is CP210x VCP drivers for windows:

File Name: CP210x_VCP_Windows_3_9_25_updated.zip
File Information: Zip Archive (~3.75Mb)

Download link:  CP210x Driver Download for Windows 11/ 10 (VCP)

Extract the .zip file and simply install CP210xVCPInstaller_x64.exe file from the folder.

Key Features & Applications of CP2102/9 USB to UART:

• Baud Rate: Supports 300 baud to 1 Mbaud.
• Voltage Tolerance: Compatible with 3.0–5.25 V (bus-powered) and 3.0–3.6 V (self-powered).
• Common Uses: Upgrading RS-232 devices to USB, cellular phone USB interface cables, USB-to-RS232 adapters.
• Universal Drivers: Compatible with Virtual COM Port (VCP) and USBXpress drivers for Windows, macOS, Linux, and Windows CE.

Check other USB to UART IC

Additional Key Facts:

1. All-in-One Integration: Combines USB transceiver, internal oscillator, programmable ROM/EEPROM, voltage regulator, power-on reset, and full UART interface no extra crystals or components needed.
2. Asynchronous Serial Data Bus (UART): Full handshaking and modem interface signals, supports 5–8 data bits, 1–2 stop bits, parity options (odd, even, mark, space, none), hardware or X-On/ X-Off handshaking, event character support, and line break transmission.
3. FIFO Buffers: 576-byte receive buffer, 640-byte transmit buffer for smooth high-throughput transfers.
4. USB Compliance: USB 2.0 Full-Speed (12 Mbps), supports suspend states, compatible with UHCI/ OHCI/ EHCI.
5. CP2102/9 Device Drivers: Supports VCP for standard COM port emulation and USBXpress for direct API control; royalty-free distribution.
6. Package: RoHS compliant 28-pin QFN (5×5 mm).

For programming micro-controllers, testing embedded boards, and building IoT projects, this driver establishes smooth communication without any complicated setup.

So if you’re looking to connect your Arduino, ESP8266, or any UART based hardware through USB, the CP2102 driver is exactly what you need to get your projects running effortlessly.
